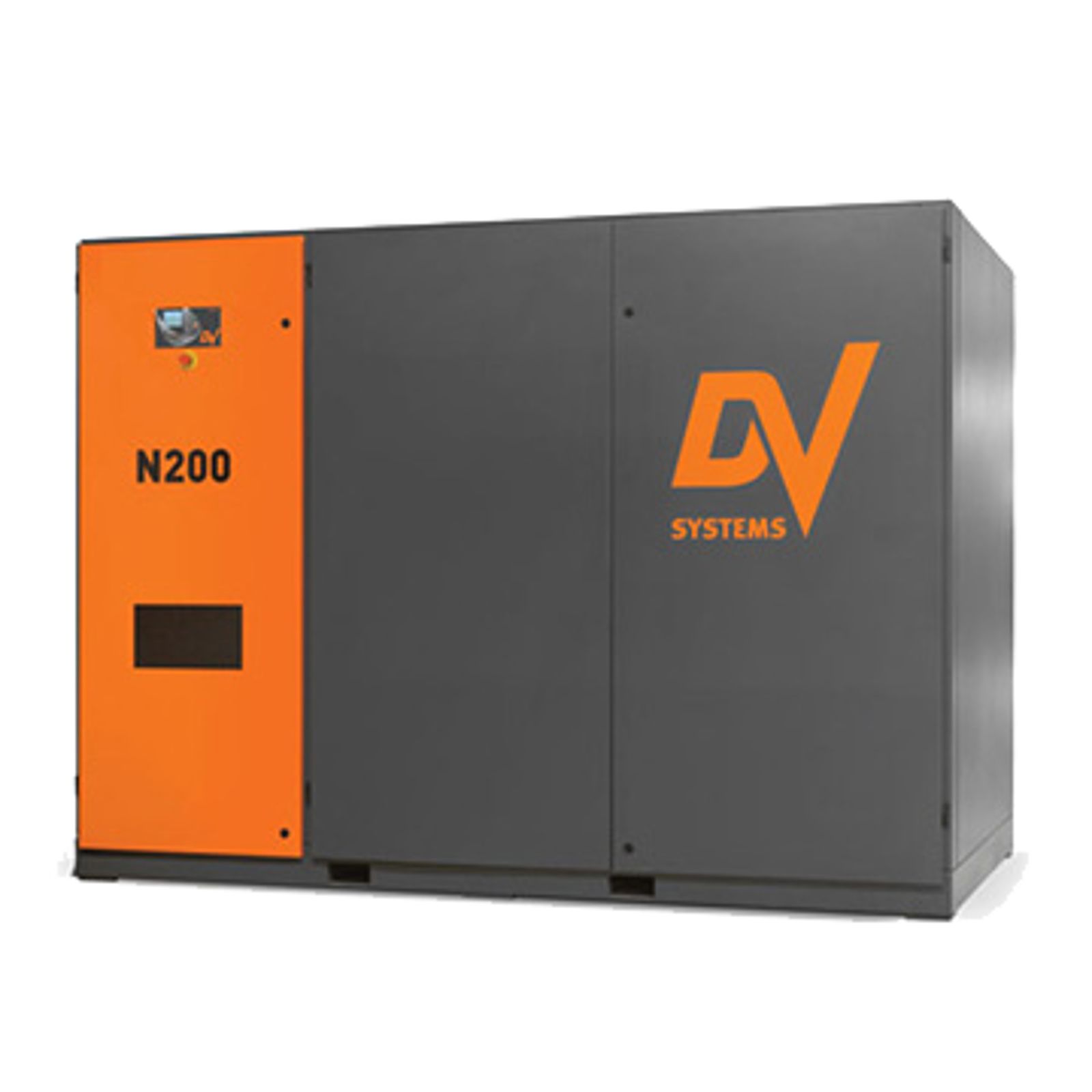

Variable Speed Rotary Screw Air Compressor N200

926 SCFM — 100 PSI

The N200 rotary screw air compressor operates at a 100% duty cycle and is ideal for intermittent to continuous-use applications where reliable compressed air is required.

The N200 rotary screw air compressor features variable speed, direct drive technology and delivers 926 SCFM of compressed air at 100 PSI.

Request a Quote Request Service, Parts or Support

200 HP

Industrial TEFC Motor

926 SCFM

Delivery

79 dBA

Sound Level

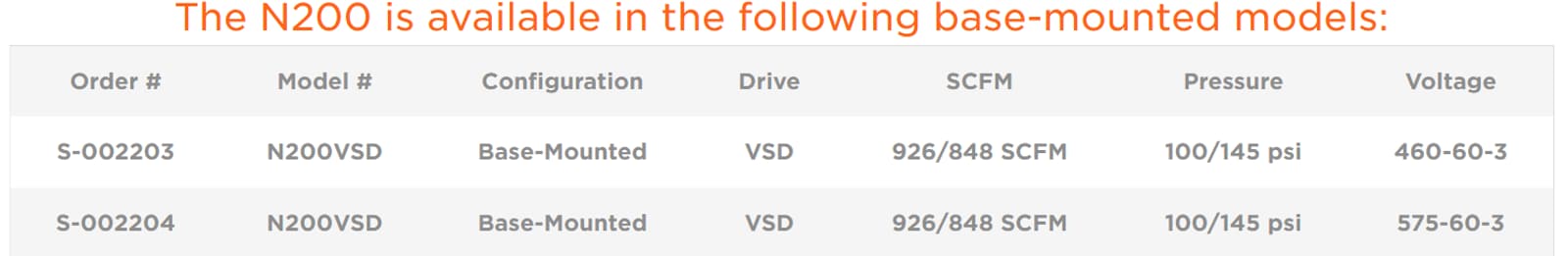

Available Models

The N200 is available in the following base-mounted models:

Order #

Model #

Configuration

Drive

SCFM

Pressure

Voltage

S-002203

N200VSD

Base-Mounted

VSD

926/848 SCFM

100/145 psi

460-60-3

S-002204

N200VSD

Base-Mounted

VSD

926/848 SCFM

100/145 psi

575-60-3

Features & Benefits

✔ Variable Speed, Direct Drive

Ideal for continuous-use applications with constant compressed air demand. Efficient power transmission provides maximum flexibility in pressure selection.

✔ Integrated Oil & Air Cooler

Contributes to the production of low discharge air temperatures, reducing energy consumption, promoting system reliability & extending air-receiver life.

✔ Integrated Innovative Design

Innovative component integration results in a compact, quiet air system engineered for efficiency & performance, providing high-capacity air delivery and stable system pressure with minimal installation space.

✔ Solid & Silent

Effectively minimizes noise levels: solid steel base frames & floors, powder-coated, heavy gauge, acoustically insulated steel cabinets & sound attenuating foam barriers.

✔ CSC300 Controller

Effectively manages, monitors and maintains optimal operational parameters to ensure stable system pressure and reliable operation.
