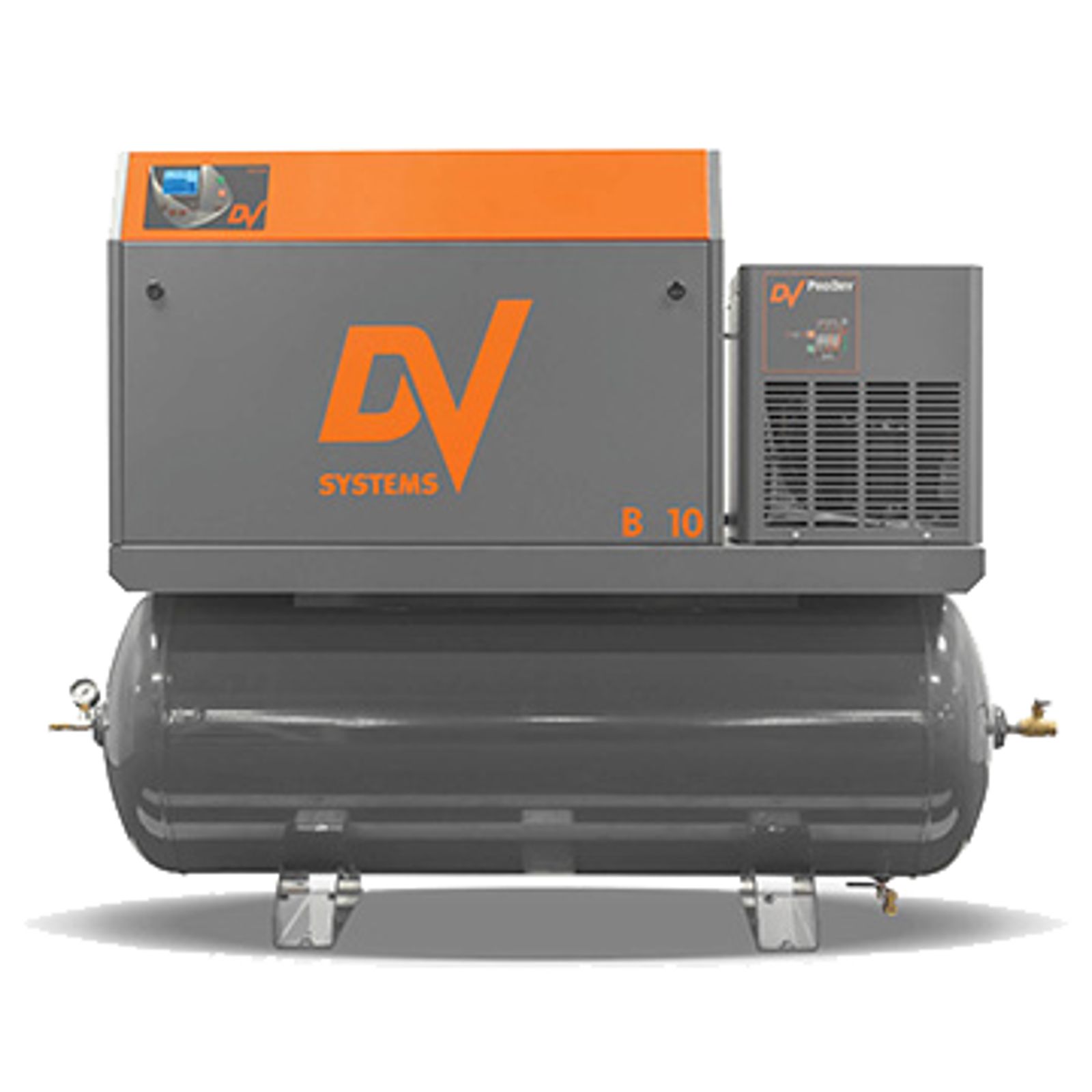

Single and Three Phase Rotary Screw Air Compressor B10

37 SCFM — 145 PSI

The revolutionary B10 rotary screw air compressor features an extremely low maximum 55 Amp draw enabling installations in locations previously uneconomical or impossible. Get more air with single-phase power.

The B10 rotary screw air compressor features variable speed, direct drive technology and efficiently delivers 37 SCFM at 145 PSI.

Request a Quote Request Service, Parts or Support

10 HP

TEFC Industrial Motor

37 SCFM

Delivery

68 dBA

Sound Level

Available Models

Note:
Equipped with a 1-micron pre-filter, refrigerated air dryer, and an 80 Gallon air receiver.

The B10 is available in the following AirSystems models:

Order #

Model #

Configuration

Drive

SCFM

Pressure

Voltage

S-001751

B10TDVSD

AirSystem

VSD

37 SCFM

145 psi

230-60-1

S-001752

B10TDVSD

AirSystem

VSD

37 SCFM

145 psi

200/208-60-3

S-001753

B10TDVSD

AirSystem

VSD

37 SCFM

145 psi

230-60-3

S-001754

B10TDVSD

AirSystem

VSD

37 SCFM

145 psi

460-60-3

S-001755

B10TDVSD

AirSystem

VSD

37 SCFM

145 psi

575-60-3

The B10 is available in the following tank-mounted models:

Order #

Model #

Configuration

Drive

SCFM

Pressure

Voltage

S-001741

B10TVSD

Tank-Mounted

VSD

37 SCFM

145 psi

230-60-1

S-001742

B10TVSD

Tank-Mounted

VSD

37 SCFM

145 psi

200/208-60-3

S-001743

B10TVSD

Tank-Mounted

VSD

37 SCFM

145 psi

230-60-3

S-001744

B10TVSD

Tank-Mounted

VSD

37 SCFM

145 psi

460-60-3

S-001745

B10TVSD

Tank-Mounted

VSD

37 SCFM

145 psi

575-60-3

Features & Benefits

✔ Variable Speed, Direct Drive

Constantly aligns energy use with air demand, adjusting motor speed to provide optimum performance and reliability, providing energy savings of up to 25%.

✔ 1:1 Direct Drive

Enables efficient power transmission and optimizes power consumption, providing more air with less energy.

✔ AirSystem

A complete solution for your entire compressed air system requirements, providing clean, dry, cool compressed air.

✔ Engineered For Efficiency

The simplified, reduced-component, encapsulated airend design enhances reliability and contributes to quiet & efficient operation.

✔ CSC300 Controller

Effectively manages, monitors and maintains optimal operational parameters to ensure stable system pressure and reliable operation.

✔ DryTank™

A unique compressed air system configuration delivering clean, dry compressed air continuously, consistently and directly to the air receiver.

✔ Integrated Oil & Air Cooler

Contributes to the production of low discharge air temperatures, reducing energy consumption, promoting system reliability & extending air-receiver life.
